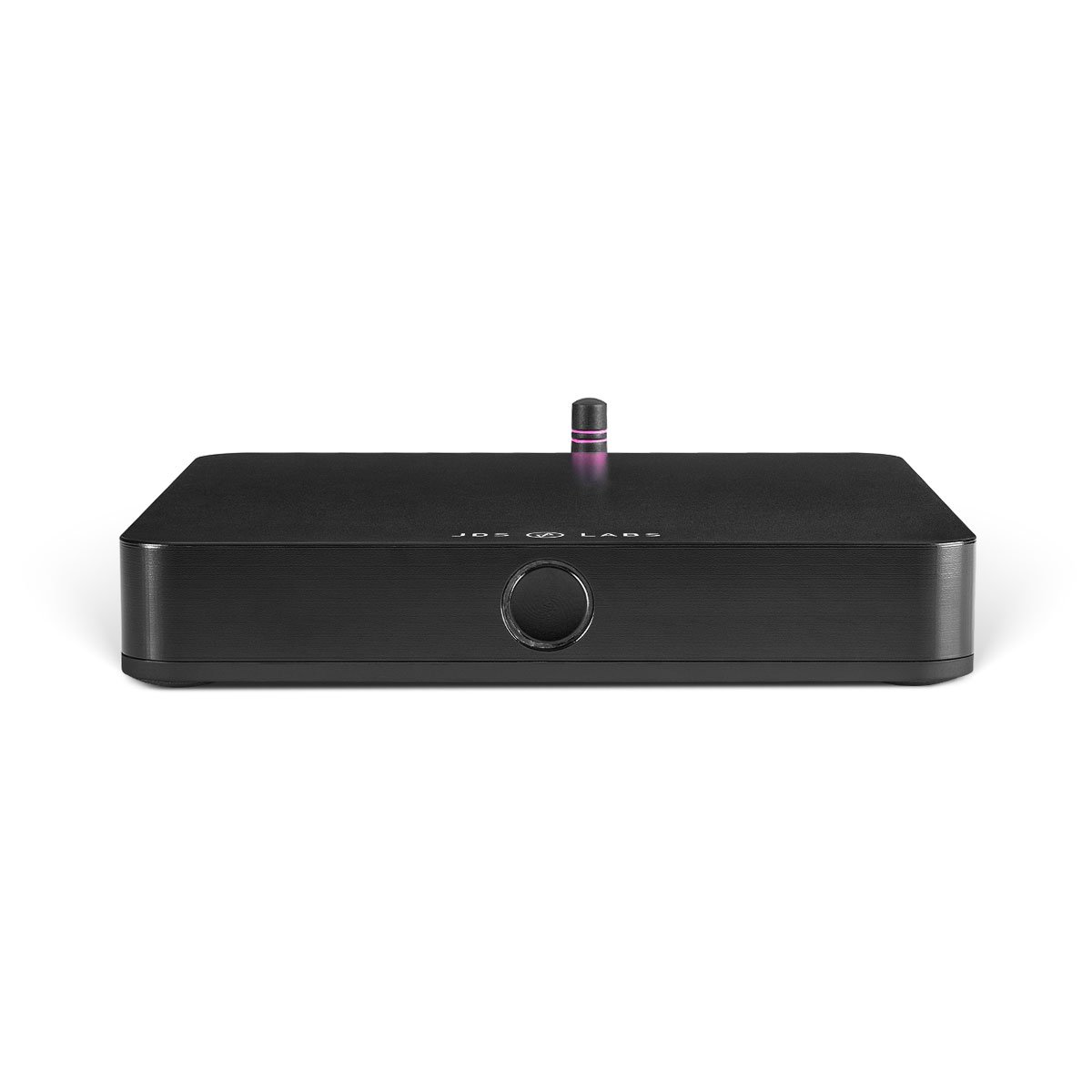

JDS Labs EL DAC II+

4.490kr

JDS Labs´ trofaste DAC er blitt end bedre med EL DAC II+

  • Perfekt til å parres med El Amp II+
  • Frekvensrespons: 10Hz-20kHz
  • To kabler inkludert:
    – USB Type A til Type B 1 meter
    – Toslink kabel 2 meter

Tilgjengelighet På lager (kan restbestilles)

Varenummer: JDSELDACII+ Kategori:
MEMS Oscillator
Relédemping
USB
Ekstern strøm
Lysende ring
Transformer isolert S/PDIF
Oppgraderbar Firmware
Valgfri Bluetooth 5
FARGESort
INNGANGERCoaxial, Optisk, USB
UTGANGERRCA

Spesifikasjoner

DAC Performance

  • Frequency Response 10Hz-20kHz+/- 0.12 dB
  • SINAD @ 1kHz, 20-22.4kHz> 112 dB
  • THD+N, 20Hz-20kHz< 0.0004%
  • SNR, 20Hz-20kHz> 117 dB
  • IMD CCIF, 19/20 kHz -6 dBFS-115 dB
  • Noise, A-Weighted-112 dBV
  • Dynamic Range, AES17, A-Weighted120 dB
  • Linearity Error -90 dBFS-0.02 dB
  • Crosstalk, 1kHz, 100k Input-132 dB
  • Maximum Single-Ended Output (RCA)2.0 VRMS
  • Maximum Balanced Output (TRS)4.0 VRMS
  • USB Jitter Components @ 12kHz-130 dB
  • PCB Stackup4 Layers

Dimensions

  • Case Dimensions5.8 x 5.8 x 0.9 in
  • Weight13 oz

Data Support

  • Audio Formats (USB)16/44.1kHz thru 32/384kHz PCM, DSD64-DSD128
  • Audio Formats (S/PDIF)16/44.1kHz thru 24/192kHz 1.
  • USB InterfaceUAC2 with UAC1 Fallback 2.
  • USB Driver OS SupportWindows 10/11, macOS, iOS, Linux, Android, PS4/PS5, Nintendo Switch 3.
  • Bluetooth 5.1SBC, AAC, aptX, aptX HD, aptX Low Latency 4.

Connectivity

  • Digital InputsUSB, TOSLINK, and Coaxial S/PDIF
  • Line-Output (SE)RCA
  • Line-Output (Balanced)
